Pipe Wrap Insulation 1-2-3

    $

    Easy

    Popular

    climaflex_pipe_insulation_15_1_1



    Overview

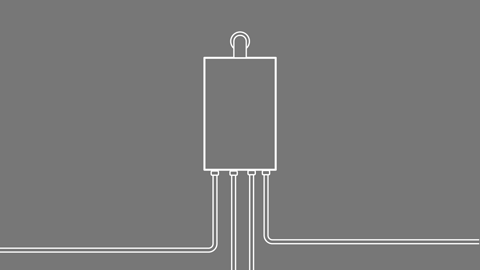

    One of the easiest ways to save energy, water and money is to insulate your hot water pipes. Pipe wrap works by making sure the temperature of your water stays as warm as possible as it travels from your hot water heater to your faucet or showerhead. By keeping your water at the desired temperature, you’ll use less water and less energy to heat the water, which means lower utility costs. The best part? Installation is fast and simple. Just remember to use caution—your hot water pipes will be hot.



    Materials and Tools Installation Instructions Installation Video

    Materials and Tools

    Pipe Wrap

    Pipe Wrap

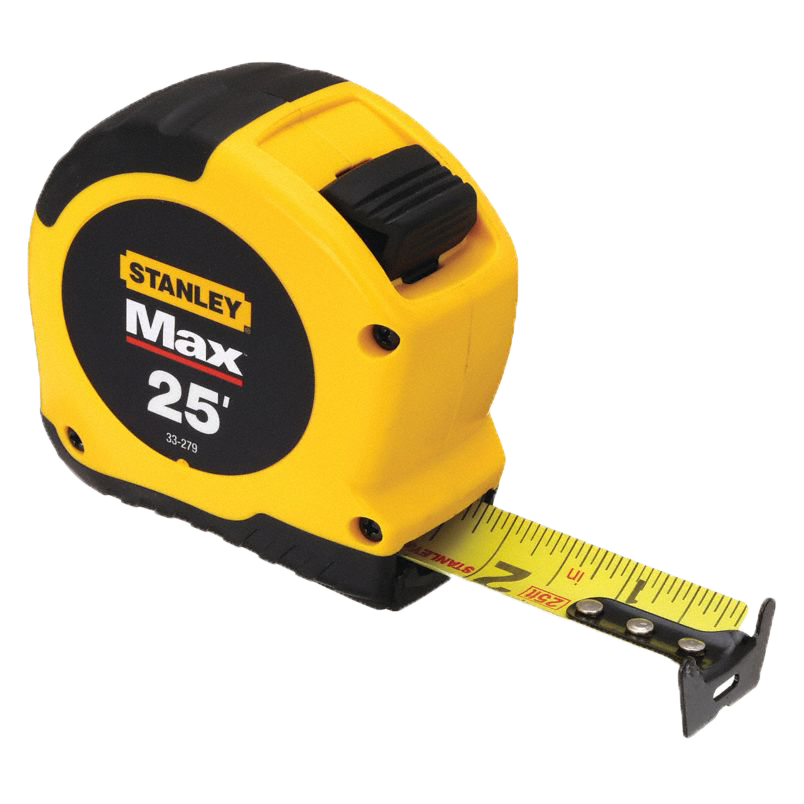

    Tape Measure

    Tape Measure

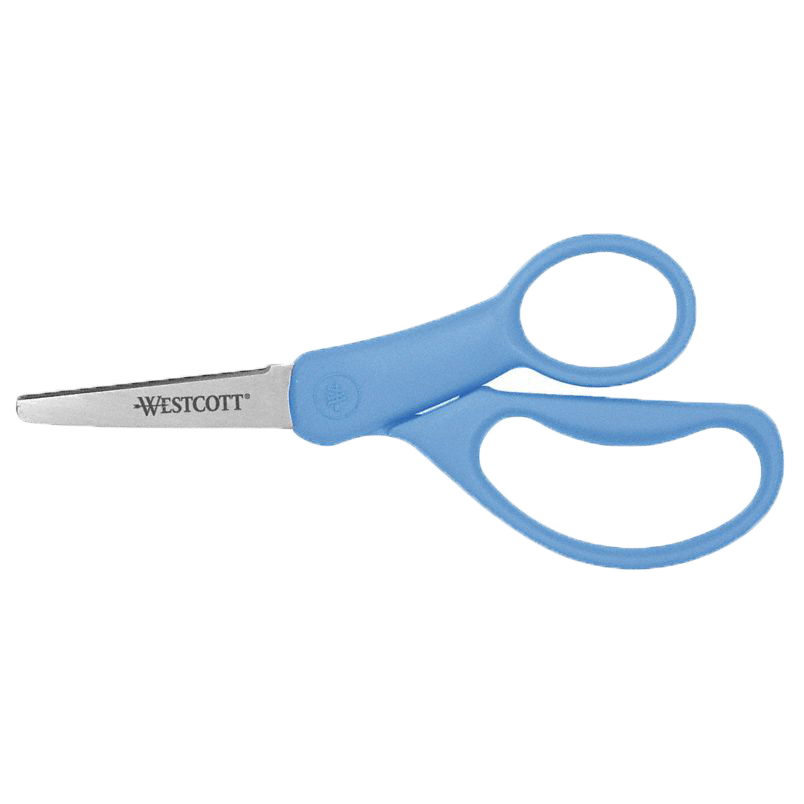

    scissors

    Scissors

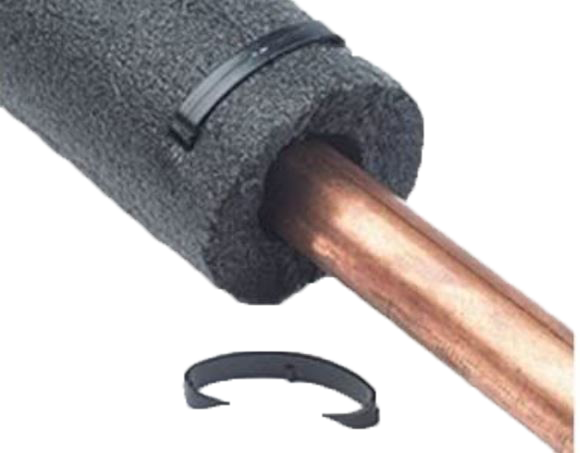

    Pipe Insulation Closure Clips or Duct Tape

    Pipe Insulation Closure Clips or Duct Tape

    STEPS

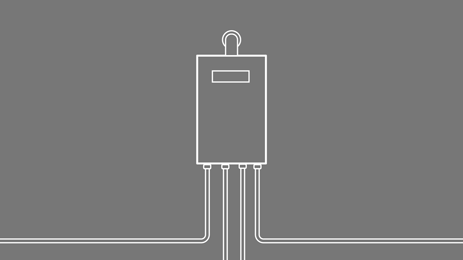

    1. Measure and cut the pipe wrap.

    Starting at your hot water heater, measure the length of pipe wrap insulation needed to cover the accessible hot water pipes. Carefully remove the pipe wrap from the packaging and cut it to the length needed.

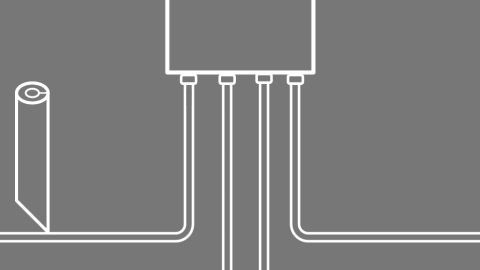

     2. Place the pipe wrap onto the pipe.

    Line up the pipe wrap with the hot water pipe, making sure the seam of the pipe wrap is facing down, touching the pipe. Gently press the pipe wrap onto the pipe—it will naturally wrap around the pipe.

    3. Secure the pipe wrap.

    Secure the pipe wrap using pipe insulation closure clips. While you can also use duct tape, pipe insulation closure clips ensure tighter seams, a cleaner installation and less chance for heat loss.

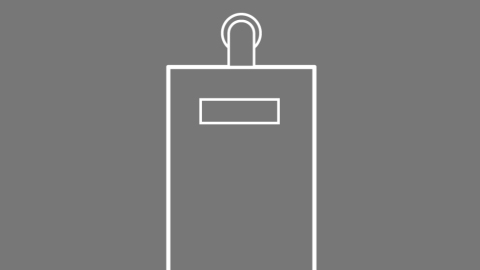

    Finally, set your water heater temperature to 120 degrees Fahrenheit or less.
